A 6×1+1 seamless camera switcher for Bronx dialogue conferencing. It takes four SDI and two HDMI sources, supports look-at-me camera tracking with the Dialogue system, and bridges the room's audio and video into Zoom, Teams and other conferencing apps over USB.
Specifications as per the official Bronx datasheet. Specifications may change without prior notice.

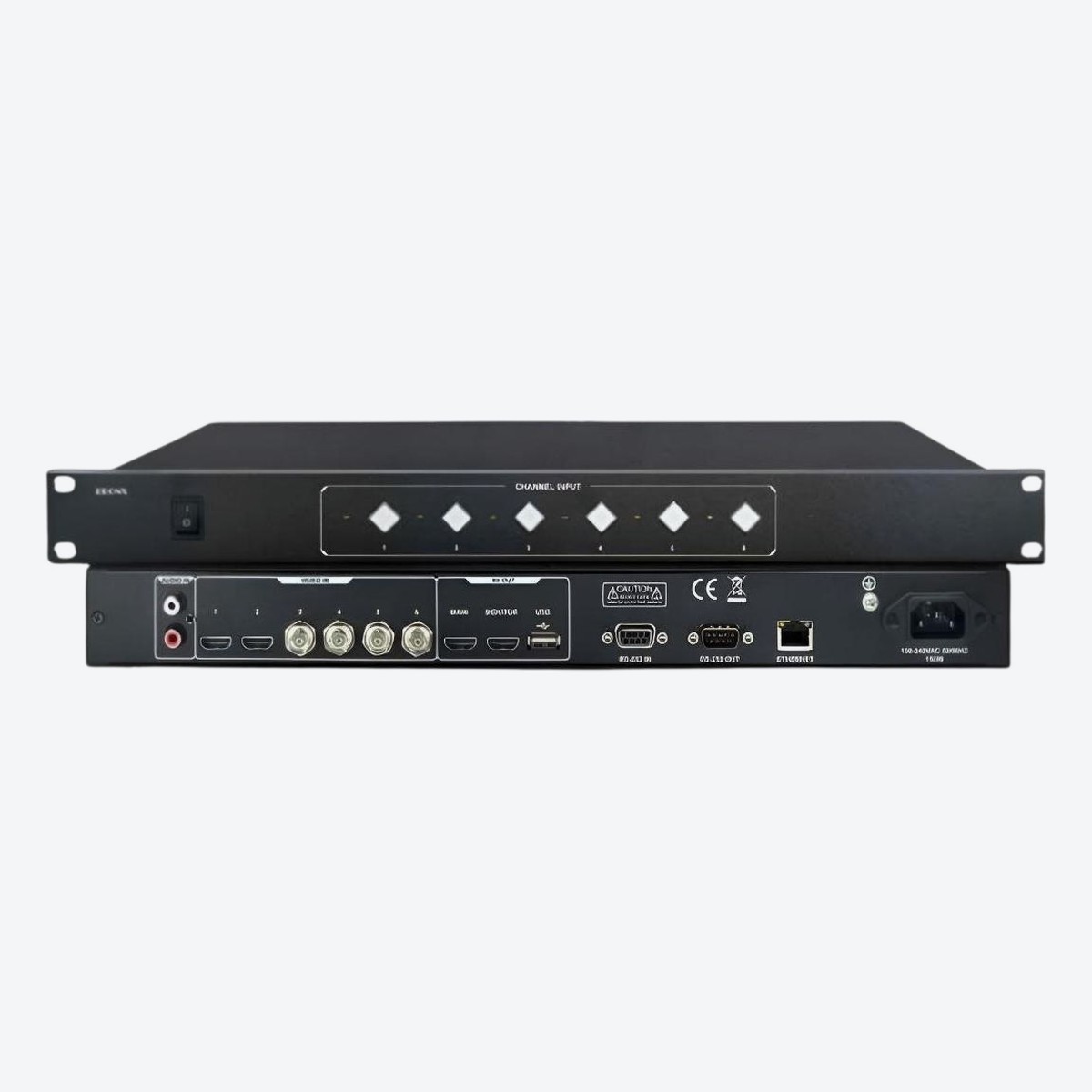

BR-DCU-CAT-6 is a camera switcher with multiple input options, built to work with the Bronx Dialogue Conference System. The camera follows whoever is speaking, while a monitoring output lets the room see the program feed.
Inbuilt audio and video bridging passes any high-definition HDMI and audio source through USB into video conferencing applications such as Skype for Business, Zoom and Microsoft Teams. Seamless switching means no jitter and no blank screen between cameras.
| Video in | 4 × HD/3G-SDI (BNC female) + 2 × HDMI-A |
| SDI formats | 1.485 Gbps HD-SDI and 2.97 Gbps 3G-SDI; up to 100 m with certified SDI cable |
| HDMI | HDMI 1.3a, HDCP 1.3, DVI 1.0; 165 MHz pixel bandwidth; up to 35 m |
| HDMI resolutions | 1280×720 @ 50/60 Hz; 1920×1080 @ 25/30/50/60 Hz |
| Audio in | 1 × RCA |
| HDMI out | 2 × HDMI-A; 165 MHz pixel bandwidth; up to 7 m with certified HDMI cable |
| Output resolutions | 720p @ 50/60 Hz; 1080p @ 25/30/50/60 Hz; 1080i @ 50/60 Hz (max 1080p60) |
| USB out | 1 × USB 2.0 Type-A female |
| Ports | RS232 (female DB9 and male DB9), Ethernet RJ45, front panel |
| Camera protocols | VISCA / PELCO-D / PELCO-P / ONVIF |
| Integration | TCP API and built-in web interface for the administrator; works with a central controller or Dialogue series main unit for auto-tracking |
| Dimensions | 483 (L) × 260 (W) × 43.6 (D) mm |
| Weight | 3 kg |
| Colour | Black |
| BR-DCU-CAT-6 | Camera switcher (this unit) |
| BR-DWTS-BU | Wi-Fi wireless touchscreen unit; battery and microphone not included |
| BR-DWTS-BTY | Battery pack, 7.2 VDC, 6500 mA |
| BR-WCH1 | Battery charger |
| BR-DCU-G485 | 485 mm microphone with anti-wind foam cover |
Six inputs to one output with no jitter and no blank screen. Maximum output is 1080p at 60 Hz.
Connect long-run SDI cameras and HDMI sources in one unit.
One HDMI and one USB output run in parallel, so a local monitor can follow the program feed.
Standard compatibility with the Bronx Dialogue Conference System, so the camera follows the active speaker. RS232 and Ethernet link to a central controller or the Dialogue main unit.
Control cameras over VISCA, PELCO-D, PELCO-P or ONVIF.
Picture-in-picture, picture-by-picture and multi-channel split view as well as full screen, controlled through the TCP API or the web interface.
Adjustable freeze, from 1 to 6 seconds.
Bridge any HDMI source and audio into Zoom, Microsoft Teams, Skype for Business and other conferencing applications over USB.
